Projection Safety System
Projection Safety System

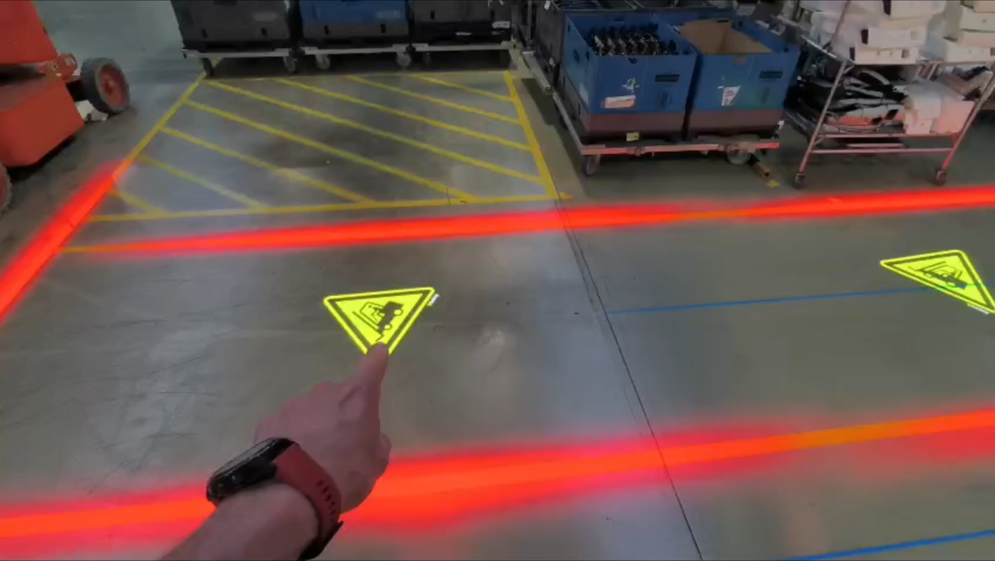

The projection safety system combines two complementary technologies to create complete floor-level safety marking without paint, tape or physical floor installation. The Safety GOBO Projector casts a custom safety image (pedestrian symbols, stop markers, hazard zones or directional arrows) directly onto the floor from above. The Linear Laser Line Projector casts a continuous, precise boundary line in red, blue or green to define pedestrian walkways and vehicle exclusion zones. Both systems are fully repositionable, require no floor preparation and can be integrated with an AI camera unit to create reactive projections that change state when a vehicle is detected approaching the zone. Used together, they provide complete zone and boundary management across any facility floor.
Product Brochure
Key Features
Projects customisable safety images and boundary lines directly onto the floor
No floor marking tape, paint or adhesive required
Fully repositionable without facility modification
GOBO system available from 15W to 300W — scalable to any facility size
Laser line projectors available in red, blue and green for colour-coded zone management
LED linear range from 80W to 200W
AI camera integration available for reactive projection on vehicle detection
Both systems can be used independently or in combination
Visible in normal and low-light operating conditions
Product Brochure
Technical Specifications
GOBO Wattage Range: 15W to 300W
GOBO Image Type: Custom GOBO safety graphic lens
Linear LED Wattage Range: 80W to 200W
Laser Line Colours: Red, Blue, Green
Mounting: Ceiling or overhead bracket mounted
Floor Preparation Required: None
Repositionable: Yes — no floor modification required
AI Camera Integration: Available — reactive projection on vehicle detection
Product Brochure
How it works
The GOBO projector is mounted above the target area and can be fixed to racking, ceiling structures or wall brackets. It projects a custom safety image downward onto the floor through a GOBO lens template. The image is crisp and high-contrast and visible from a significant distance. The laser line projector is mounted at a calculated height to project a continuous, sharp line across the full width of an aisle or corridor. Multiple units can be used in sequence for longer runs. When integrated with an AI camera, the system monitors the projection zone in real time. If a vehicle is detected approaching, the projected image or line can switch to a flashing or alternative warning state, transforming a static marker into an active safety alert.
Product Brochure
Interested in our AI Camera Systems? Get in Touch Today.
Increase safety standards with Polybar Group's AI Camera Systems and impact protection range. Contact us today to schedule your free consultation and site survey.
